Capabilities
Manufacturing Behind Every Mold
A 1,500 m² workshop with CNC, EDM, wire cutting, injection molding and dimensional inspection supporting each mold from machining through validation.
Equipment Proof
Machining, Mold Fitting and Inspection Equipment
Current customer-supplied workshop photography documents the equipment used across mold machining, fitting and dimensional verification.
Verified Capabilities

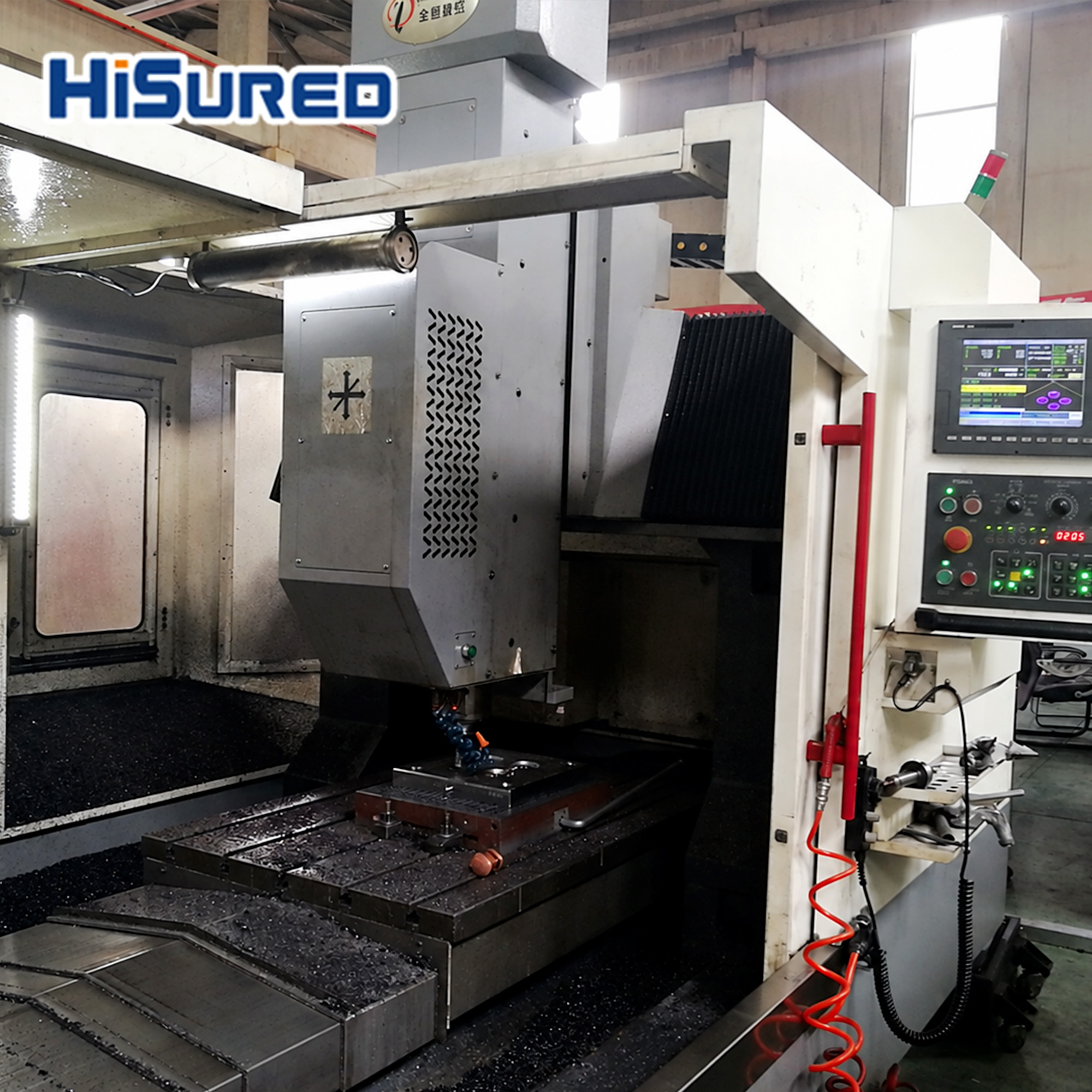

CNC Machining
Multi-axis CNC machining of mold bases, cores and cavity blocks to drawing tolerance.
EDM
Electrical discharge machining for detailed cavity features and hardened steel sections.
Wire Cutting
Wire-cut EDM for inserts, ejector components and precision profile cutting.
Injection Molding
Trial and production injection molding to validate mold performance and part quality.

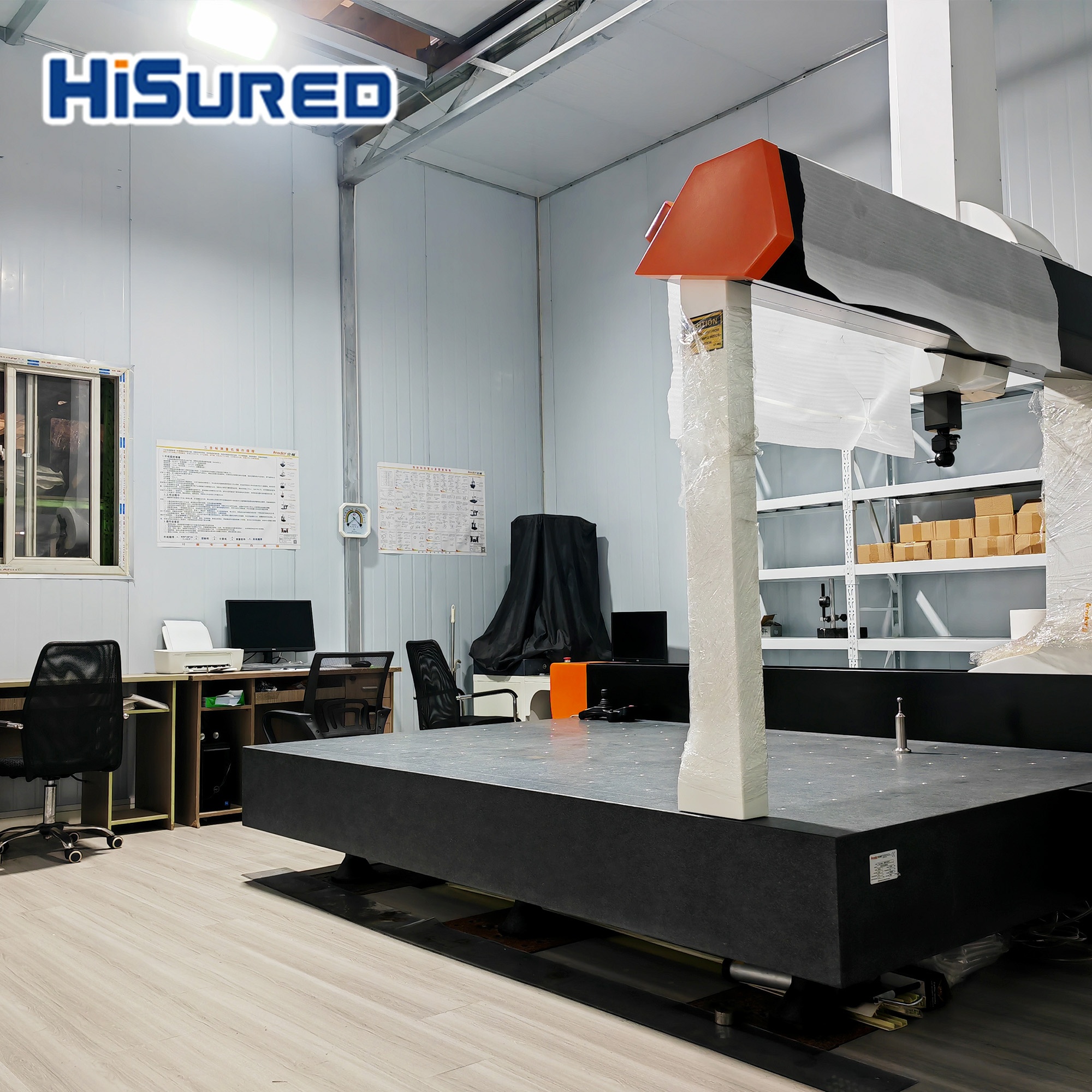

CMM Inspection
Coordinate measuring machine inspection to verify part and mold dimensions against drawing.

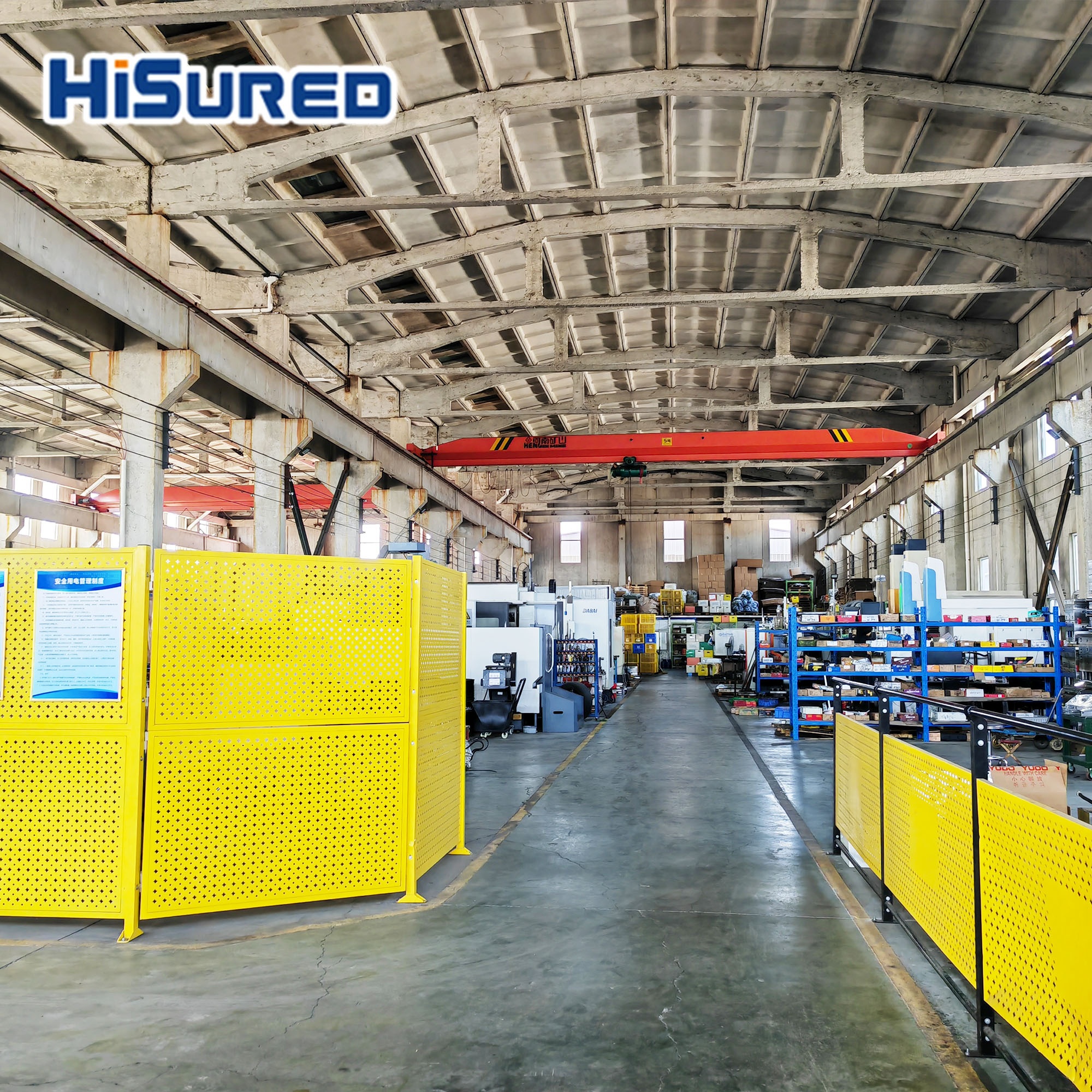

Factory Overview
- Factory Area
- 1,500 m²
- Employees
- 22
- Capacity
- 100
- mold sets / month
Molds are shipped FOB Qingdao with wooden-box export packing. Typical mold lead time is 35–65days, depending on drawing, material, mold structure and validation requirements.
Custom Mold Process
Step 1
Drawing Review
Your drawings and requirements are reviewed for feasibility and manufacturability.
Step 2
Quotation & Confirmation
A custom quotation is prepared from your drawing; specification and terms are confirmed before start.
Step 3
Mold Design
Mold structure, cavity layout and cooling circuits are designed around the confirmed part.
Step 4
CNC / EDM / Wire-Cut Machining
Mold bases, cores and cavities are machined using CNC, EDM and wire-cutting processes.
Step 5
Assembly & Trial
The mold is assembled and trial-run to validate fit, function and injection performance.
Step 6
CMM Inspection
Critical dimensions are measured on a coordinate measuring machine against the drawing.
Step 7
Packing & Shipment
The mold is packed in an export wooden case and shipped FOB Qingdao.

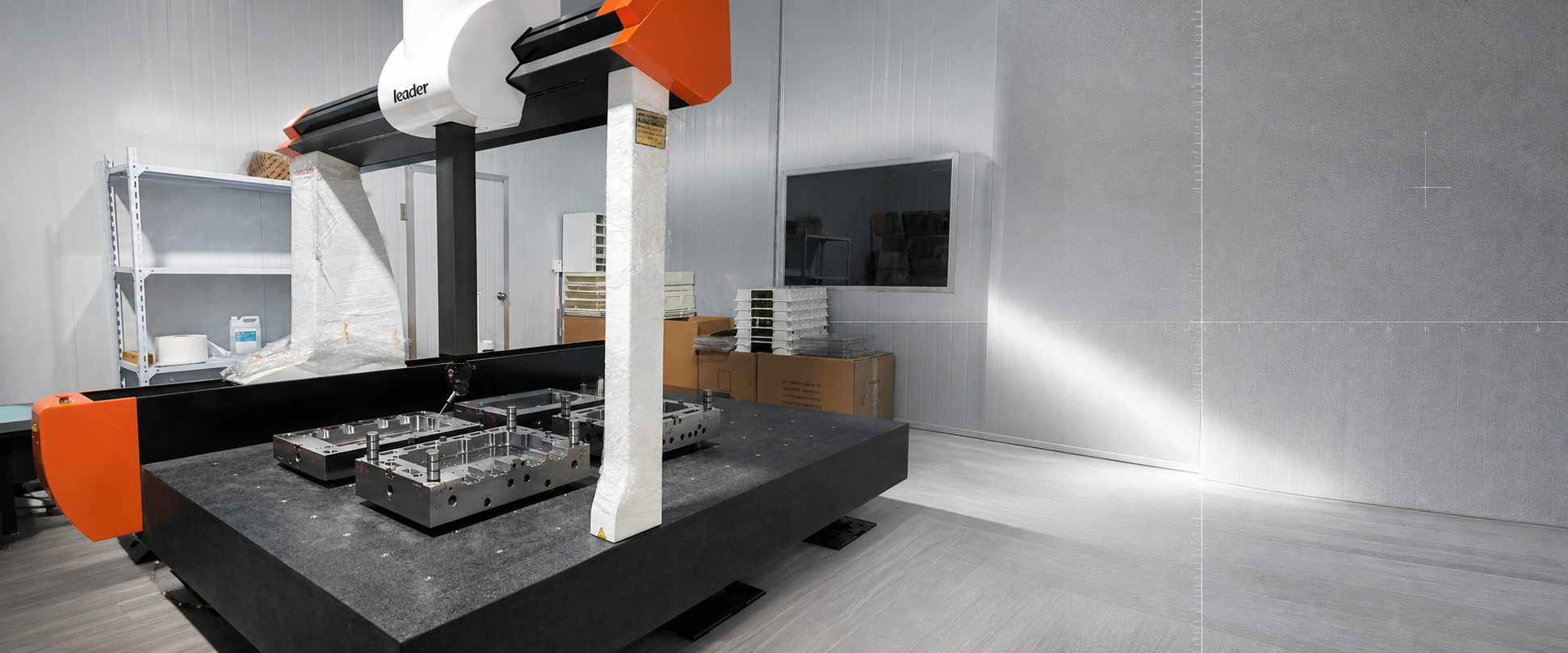

Dimensional Inspection
Critical mold and component dimensions are measured on a coordinate measuring machine (CMM) against the customer drawing before shipment. This verifies the mold matches the confirmed specification prior to packing.
